What is a Kaplan Turbine and What are its Characteristics?

What is a Kaplan Turbine and What are its Characteristics?

The Kaplan turbine facilitates the axial direction of water towards the turbine. In the Kaplan turbine, a type of turbine that rotates axially, there are usually pressure differences between the water’s entry and exit. Mainly used in river-type hydroelectric power plants, these types of turbines can also adapt to different flow levels thanks to their adjustable blades. In our content, you can find answers to many questions such as what is a Kaplan turbine, where it is used, and what its characteristics are.

What is a Kaplan Turbine?

Various water turbines are designed for use in hydroelectric power plants in general. Among these, Kaplan turbine types are quite common. These water turbine types, which stand out with their adjustable blades, are of the propeller type. The Kaplan turbines, patented by engineer Viktor Kaplan in 1913, also experience a pressure difference between the water’s entry and exit because they rotate axially. Their operating conditions are high flow rate and low head. Designed mainly for use in river-type hydroelectric power plants, they are also known as classic river turbines.

What is a Mini Grid Kaplan Turbine?

Mini grid Kaplan turbines are a popular type of Kaplan turbine designed for small-scale hydroelectric energy production. Their operating principle is similar to classic and large Kaplan turbines. The only significant difference is their use in smaller-scale applications.

About Viktor Kaplan, the Inventor of the Kaplan Turbine

Viktor Kaplan (1876 – 1934) was an Austrian mechanical engineer and inventor who spent most of his professional life at the German Technical University in Brno.His primary area of interest was water turbines, and he conducted many experiments to adapt the machines used in his time to different flow and gradient values.His effort to improve existing turbines led him to find his own design: an axial flow turbine with adjustable propeller blades.Between 1912-13, Kaplan applied for patents for his inventions. These turbines, named after him, began to be produced in large quantities and started being used in other countries.The Kaplan turbine he invented has become one of the fundamental components of modern hydroenergy.How Does a Kaplan Turbine Work? In the Kaplan turbine, water is directed axially towards the turbine. Then, it flows towards the turbine’s propeller-like blades. This flow towards the blades not only causes the turbine to rotate but also generates the mechanical energy used for energy production. One of the most important features of Kaplan turbines is having adjustable blades. This allows Kaplan turbines to adapt to different flow conditions with high efficiency. Since the blade angles can be changed depending on the load, they can operate with high efficiency at every load (at every water flow rate).

Where is the Kaplan Turbine Used?

These types of water turbines are mainly designed for use in rivers and low-head dams. In fact, since they are used in river-type hydroelectric power plants, they are also referred to as “classic river turbines.”

Components of the Kaplan Turbine:

The Kaplan turbine generally consists of 6 different parts. These are as follows:

Spiral Casing: Water is directed towards the Kaplan turbine through a spiral casing in an evenly distributed manner. Spiral casings help direct the water towards the turbine’s propeller.

Guide Vanes: Guide vanes control the speed and direction of the water flow. Also known as adjustable vanes. They ensure the water reaches the turbine blades at the optimum angle, thus increasing energy efficiency.

Runner Blades: The runner blades are the heart of Kaplan turbines. These are also adjustable blades. It’s possible to adjust the runner blades according to the flow speed of the water and the turbine’s needs. This adjustable structure allows the turbine to operate with maximum efficiency under different flow and head conditions. This is one of the most important features of Kaplan turbines.

Turbine Shaft: The rotation of the propeller is transferred to the turbine shaft. Through this shaft, the rotation of the propeller is converted into mechanical energy. This mechanical energy is then transferred to the generator in the next steps.

Generator: The generator, which receives the mechanical energy generated by the turbine shaft, actually provides electrical energy. The rotation of the turbine shaft is converted into electrical energy through the generator.

Draft Tube: Finally, the draft tube is the part where the water is discharged. This tunnel is located beneath the turbine. By reducing the water’s pressure, the draft tube creates a negative pressure which increases the water’s entry speed to the turbine.

Advantages of Kaplan Turbines:

One of the most significant advantages of these water turbines is the high efficiency values they offer. They show noteworthy performance in terms of efficiency across a wide flow rate scale. Adjustable propeller blades are among the most distinctive features of Kaplan turbines. These blades, with their adjustable structure, adapt to different flow and load conditions. They can operate even in low head conditions, making them environmentally friendly as well.

Disadvantages of Kaplan Turbines:

Kaplan turbines can be costly initially, especially due to their complex designs . Secondly, there is a risk of cavitation (the formation of gas bubbles within a liquid). Especially at high flow rates, this risk can emerge and lead to damage. Their generally large size can also pose various challenges during the installation phase.

Hydroelectric Power Plants and the Characteristics of Francis Turbines

Hydroelectric Power Plants and the Characteristics of Francis Turbines

The Francis turbine is a type of turbine that can be used in medium and high head conditions. It is among the most frequently used reaction turbines in medium or large-scale hydroelectric power plants. Francis turbines, which have multiple components such as blades, casings, and wheels, can be used in falls ranging from as low as 2 meters to as high as 300 meters. You can easily find what you’re curious about regarding these types of turbines, which have a wide variety of application areas, in our content.

What is a Francis Turbine, and What Does it Do?

First, when looking at what a Francis turbine is; these are reaction turbines that can be used in hydroelectric power plants of different sizes. In this aspect, water enters the turbine in an axial direction from the surroundings towards the center and exits in a radical manner in Francis turbines, which are preferred in many applications. The reaction turbines, which these devices are part of, take in high-energy liquid and reveal its momentum. In this aspect, they are among the types of reaction turbines, just like Kaplan turbines. Francis turbines, which use both the pressure and the kinetic energy of water, can thus work across a broad flow range.Additionally, these turbines can work equally well when positioned horizontally as well as when directed vertically. Francis turbines are the most frequently used turbines in hydroelectric power plants. These turbines can offer efficiencies up to 95% thanks to their design. However, this is only possible under optimum conditions. Francis turbines are the first hydraulic turbines with a radial entrance, designed by the American scientist James Francis.

About James Francis, the Inventor of the Francis Turbine

James Francis (1815 – 1892) was an engineer born in England. He began his engineering career at the age of seven, working as an apprentice to his father. In 1848, Francis and another engineer, Uriah A. Boyden, successfully developed the turbine now known as the Francis turbine. After examining Boyden’s turbine, Francis managed to redesign it to increase its efficiency. Thus, Francis achieved a remarkable efficiency rate of 88%.Working Principle of the Francis Turbine In these types of reaction turbines, water enters axially from the surroundings of the turbine towards the central point. Then, it exits in a radical manner. The water passing through the Francis turbine loses pressure but remains at roughly the same speed. Therefore, it is considered a reaction turbine. After entering the turbine, the water always flows inward, towards the center. It also has a fairly simple design. A flat, circular plate has rotating shafts sitting vertically on this plate. Curved blades are located on the plate. The blades, known as guide vanes, are stationary and mounted on the interior surface. These blades serve the purpose of directing the water at the appropriate angle.

Components of the Francis Turbine Spiral Casing

The Francis turbine has a spiral casing that ensures water is evenly distributed around the turbine. These casings help the water to flow smoothly into the turbine, thus increasing the turbine’s efficiency.

Guide Vanes: Just like in Kaplan turbines, Francis turbines have guide vanes. These vanes, located inside the spiral casing, control the direction and speed of the flow before it is directed to the wheel. The vanes open and close to adjust the turbine’s output power.Turbine

Wheel (Runner): The turbine wheel is like the heart of the Francis turbine. These wheels convert the energy of water into mechanical energy. Water hits the blades of the wheel, initiating its rotational movement.

Draft Tube: The water entering the wheel moves to the exit step. Then, it is removed from the turbine through the draft tube. The draft tube has the task of raising the water’s pressure to atmospheric pressure. This maximizes the use of the water’s kinetic energy and increases the water’s entry speed to the turbine. Generator: Lastly, Francis turbines have a generator. Through this component, the rotation of the turbine wheel is converted into electrical energy.

Applications of Francis Turbines

Francis turbines are frequently used in hydroelectric power plants due to their high efficiency and wide operating range. Their ability to operate in medium and high head conditions makes Francis turbines ideal for hydroelectric projects. In these plants, high-pressure water enters the turbine and is directed to the blades at optimal angles.

Advantages & Disadvantages

These reaction turbines offer a wide operating range, compact and simple design, high durability, and longevity, making them quite advantageous. These features make them highly efficient for many hydroelectric projects. Among their disadvantages are high installation costs, more complicated manufacturing processes, the risk of cavitation, and environmental impacts.

From A to Z: Pelton Turbine Features

From A to Z: Pelton Turbine Features

Pelton turbine, a type of impulse turbine, converts the kinetic energy of high-pressure water into mechanical energy. Thanks to the parts of the Pelton turbine, which consist of a valve, buckets, shaft, generator, and protective casing, energy production is carried out. The Pelton water turbine, frequently used in hydroelectric power plants, is particularly suitable for high-head conditions. You can find answers to your questions like what is a Pelton type turbine, and how does it work in our content, and learn about its suitability for your applications.

What is a Pelton Turbine?

The question of what a Pelton turbine is can be answered on several levels. Firstly, these turbine types are among the impulse turbines. In these turbines, the rotation of the turbine is achieved as a result of the change in water velocity caused by the impact of a water jet. The kinetic energy turns into mechanical energy as a result of the water jet hitting the blades. As one of the impulse turbines, the Pelton turbine operates in this manner. These turbines are generally used in areas with a head above 300 meters. In other words, Pelton turbines can be preferred at very high head levels.

About Lester Pelton, The Inventor of the Pelton Turbine

Lester Pelton (1829 – 1908) was a significant inventor born in the USA, who made important contributions to the development of hydroelectricity worldwide. In the late 1870s, he invented the Pelton turbine, which was the most efficient design of the impulse water turbine at the time. In the late 1870s, Pelton modeled, tested, and produced the first turbine wheel, called the “Pelton Runner.” In 1878, he installed the first operational Pelton wheel at the Mayflower Mine in Nevada City. Pelton’s ideas for improving the turbine design came from his work on mining equipment and operations in California’s Gold Rush region.

Prominent Features of the Pelton Turbine

Among the features of the Pelton turbine, its ability to operate under high-head conditions stands out. Additionally, it can be preferred in places with low flow rates. These turbines, which use high-pressure water jets, convert energy into mechanical energy as efficiently as possible. From this perspective, the Pelton turbine is known for its efficiency since the kinetic energy of water can be converted into mechanical energy at nearly a 100% rate. Due to its structure, it is frequently used especially in hydroelectric power plants in mountainous regions.

Working Principle of the Pelton Turbine

The working principle of the Pelton turbine is quite simple. In these types of turbines, high-speed water jets are emitted from nozzles surrounding the turbine. These high-speed water jets are created by pushing high-pressure water (like water falling from high peaks) through nozzles. These nozzles are designed to maximize the kinetic energy of the water. Maximum efficiency from the Pelton turbine can be achieved when the thrust obtained by the blades is at its maximum. When the water jet hits the Pelton turbine, a propulsive force emerges. This force makes the turbine rotate. The rotational motion is then transferred to the generator, and mechanical energy is converted into electrical energy.

Design

The Pelton turbine has a quite simple design. A large circular disc is mounted on a rotating shaft, known as the rotor. Blades are integrated into this circular disk at equal intervals around the entire wheel. Nozzles are also placed on the wheel and serve the purpose of delivering water to the turbine. Water jets emerge from these nozzles towards the turbine wheel, which causes the turbine to rotate.

Parts of the Pelton Turbine Nozzle and Flow Control Valve:

One of the most important components for the operation of the Pelton turbine. Water gushes out at high speed from a part called a nozzle, and the turbine starts operating. The nozzle also functions to maximize the kinetic energy of the water. The flow control valve adjusts the amount of water entering the turbine, thus the speed of the turbine and the power generated can be controlled.

Buckets: The high-speed water jet coming out of the nozzle hits the special bucket rotating around the turbine. These buckets are parts that convert the kinetic energy of water into mechanical energy. Buckets direct the water to both sides due to their surfaces and enable the turbine shaft to rotate.

Turbine Shaft (Runner): The high-speed water jet that hits the buckets causes the turbine shaft to rotate. This rotation transfers mechanical energy to the generator.

Generator: The generator, to which mechanical energy is transferred, converts this energy into electrical energy.

Protective Casing (Casing): Finally, there is a casing that protects all parts of the Pelton turbine. This casing also ensures the water flows in the correct direction within the turbine. Advantages & Disadvantages Pelton turbines have multiple advantages and disadvantages. Below you can find these details for your information:

Advantages: High efficiency is among the most significant advantages of Pelton turbines. They can achieve high efficiency rates since they operate under high-head conditions. Thus, the kinetic energy of water can be converted into electrical energy at the maximum level. Its simple design and long-term use are also important advantages.

Disadvantages: Pelton turbines offer limited use because they are only suitable for high-head conditions. Meeting high-head conditions can also introduce significant costs. There is also a risk of cavitation (the formation of vapor bubbles in a liquid in low-pressure areas) in Pelton turbines. Finally, they may have negative impacts on the environment and ecology.

Hydraulic Pump Body in Aircraft

Hydraulic Pump Body in Aircraft

The hydraulic pump body in aircraft generates the necessary pressure to provide power. Generally, an aircraft’s hydraulic system uses a fluid under pressure to move various components. Since almost all aircraft benefit from some hydraulically operated components, these systems are extremely important. In our content, we have compiled answers to many questions such as what are hydraulic systems and what is the function of a hydraulic pump.

Hydraulic Systems in Aviation

To start from the basics, let’s first understand what hydraulics is. This term refers to machines operating with water or another fluid pressure and also denotes the science and technology studying the laws applied to water flow. In aircraft, hydraulic systems take advantage of the properties of fluids and enable the performance of various tasks that human speed cannot achieve. In other words, movement and force are provided with the help of fluids. These systems use hydraulic fluid to transmit power from the aircraft engines to its components. This fluid is pressurized to activate various aircraft systems, thereby affecting system performance. Therefore, choosing the correct hydraulic fluid is necessary for the optimum performance and longevity of aircraft hydraulic systems. One of the most critical functions of hydraulic systems in aircraft is to raise and lower the landing gear. The landing gear is a complicated system requiring significant power. Hydraulic systems generally provide this power, allowing the landing gear to rise and lower quickly and efficiently. Without this, a successful landing would be impossible.

 What are the advantages offered by these systems?

As mentioned above, they are primarily required for a successful and safe landing. They also provide benefits in terms of flaps and brakes that slow down the aircraft during landing. Additionally, hydraulic systems operate safely under extreme conditions such as high altitudes and low temperatures. What are the main parts of the hydraulic system used in aircraft? The basic components include the pump, reservoir, cylinder, and heat exchanger. Among these, the hydraulic pump body generates the necessary pressure. Thanks to this pressure, various movable parts in the aircraft operate effectively. Additionally, hydraulic pumps play an effective role in converting energy into mechanical motion, increasing energy efficiency and possibly reducing fuel consumption. Moreover, sealing is a very important requirement in hydraulic systems. Hydraulic pump bodies also offer superior sealing capacities.

 The Importance of Hydraulic Pump Body for Aircraft

Why are these components so important within hydraulic systems? There are various explanations for this in terms of safety, comfort, and efficiency. Below, you can find the importance of the hydraulic pump body from different perspectives:

  • The hydraulic pump body establishes the necessary pressure for the effective operation of various parts in the aircraft.
  • Efficient and appropriate pump design can reduce fuel consumption and increase efficiency.
  • Leaks in hydraulic systems can lead to performance loss and potential safety risks. However, the hydraulic pump body can provide excellent sealing properties, maintaining the system’s integrity.
  • Their adaptability to different aircraft models also provides advantages in terms of pump usage.

In general, hydraulic pump bodies directly affect the performance, safety, and operational efficiency of the aircraft.

How is a Hydraulic Pump Body Manufactured?

The production process has many stages, which can be divided into two main subcategories: material selection and production steps. In material selection, cast iron, steel alloys, and aluminum alloys stand out. For example, cast iron material offers superior strength and successful sealing capabilities, which are important attributes for pump bodies. Steel alloys are valued in the manufacturing process as they are preferred for applications requiring excellent durability and corrosion resistance under high pressure. Lastly, aluminum alloy is chosen for its high corrosion resistance among other features.

The production steps can be outlined in seven stages, which you can find below:

  • Design and Engineering: CAD (Computer-Aided Design) software is used in the design of the hydraulic pump body. In addition, material selection, dimensions, performance, efficiency, and many other criteria play a role in the design.
  • Material Preparation: This step involves preparing the materials selected according to various criteria to ensure they are suitable for the manufacture of the pump body.
  • Casting or Machining: If the casting method is used, cast iron or aluminum alloys may be preferred. In CNC machining methods, steel alloys or aluminum alloys are highlighted.
  • Heat Treatment: Heat treatment involves planned – controlled heating and cooling processes applied to solid metal or alloys. Therefore, heat treatment may be applied to the selected material for the pump body if necessary.
  • Surface Treatments: This process is applied to increase corrosion resistance or reduce surface roughness.
  • Assembly & Testing: The hydraulic pump body is integrated into other hydraulic systems, and the assembly is completed. Processes such as seal and performance tests are applied to the part.
  • Quality Control: Finally, compliance with quality standards and design specifications is determined.

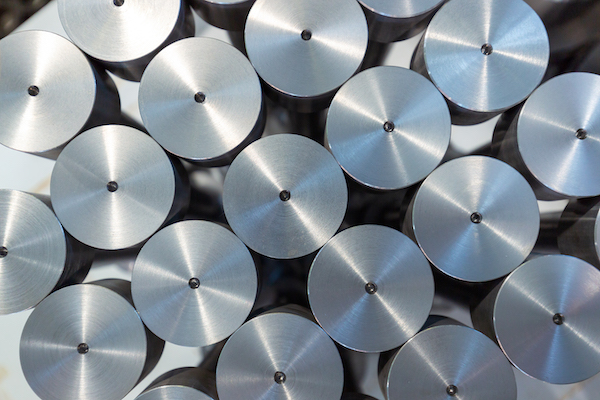

What is Cryogenic Steel?

What is Cryogenic Steel?

Cryogenic steel offers superior endurance even at very low temperatures. Its outstanding durability and toughness make it a prominent material in sectors such as maritime and defense industries. Having various types helps find the cryogenic steel suitable for specific needs. In our content, you can find answers to questions like what is a cryogenic process and what is cryogenic steel used for.

What is the Cryogenic Process?

First, looking at what cryogenic means; this concept is a term in physics. It refers to the production and processes at very low temperatures. The origin of the word comes from the Greek words “kryos,” meaning “cold,” and “genic,” meaning “to produce.” With the cryogenic process, it’s possible to enhance the thermal treatment by going down to temperatures as low as -196°C. As a result, materials processed this way can achieve high wear resistance, high toughness, and low friction on the surface.

 What is Cryogenic Steel?

Steels that have undergone the cryogenic process are also known as cryogenic steels. These types of steels maintain superior endurance even at very low temperatures. Moreover, due to their excellent toughness, they represent a special type of steel. Cryogenic steels, thanks to their superior properties, are ideal for critical applications such as bearing shells and railway connections. For example, ball sockets and bearing shells are very important for the maritime and defense industries. These application areas require high strength and durability. Cryogenic steels are materials that can provide this high-level endurance.

 What are the Features of Cryogenic Steel?

These types of steels, especially at very low temperatures, provide top-level performance and safety. Therefore, they are often chosen materials in areas such as defense, transportation, and energy. The most prominent feature of these materials is their high strength and toughness. In addition, they have various other advantages. Below, you can review some of their outstanding features:

  • High Strength and Toughness: Steel material that has undergone cryogenic treatment becomes much more durable.
  • Easy Processability: Pure steels wear and tear less during the processing phase. Thus, manufacturing efficiency increases, and product quality also improves.
  • Customizable Options: These types of pure steels can be customized according to the needs and application areas.
  • Longevity: Due to features such as high strength and toughness, these steels are much longer-lasting.
  • Safety: The risk of failure in materials made of pure steel decreases.

What is Cryogenic Steel Used For?

The cryogenic process exposes steel to extremely low temperatures. This results in a significant improvement in material performance. Its properties make cryogenic steels necessary for areas like the maritime and defense industries. In addition to the aforementioned ball sockets and bearing shells, it is also prominent in railway connections. Additionally, it is a very important material in polar regions or in the transportation of liquid gases.

Steps Applied in the Cryogenic Treatment of Steel

There are various stages related to steel undergoing cryogenic treatment. These include correct material selection, thermal treatment, mechanical tests, and many subheadings. All these steps are important in terms of selecting the right steel and processing it correctly. Below are the application steps in order.

  1. Material Selection: It’s necessary to choose one of the suitable steels for cryogenic processes. Steel generally offers a wide variety of materials. Therefore, choosing those that can undergo cryogenic treatment is important. Among these options are steels containing alloy elements such as niobium, vanadium, or titanium. These components typically stand out among cryogenic steels because they provide high toughness and strength at low temperatures.
  2. Design and Engineering: Design and engineering are methods of identifying and solving various engineering problems. It consists of many components like originality, adaptability, and product design. In this phase, the mechanical properties of the material are also very decisive. Accordingly, the field of design and engineering can be summarized in three points:
  • Mechanical Properties: This is the step where mechanical properties like a material’s strength, hardness, brittleness, and toughness are considered. Accordingly, choosing the right material becomes significant.
  • Thermal Treatment: One of the most important parts of the production process. It involves heating metal or another material to a certain temperature and then cooling it for hardening.
  • Design Optimization: This is the stage of choosing the most suitable design among many options. It involves optimizing the dimensions, geometry, and other elements of components.

    3. Manufacturing Techniques

Special methods related to the cryogenic treatment of steel come into play at this stage. It can be summarized in two items: welding – joining and processing precision:

  • Welding and Joining: The welding of cryogenic steels should be done without deteriorating the properties of the material. Therefore, suitable welding methods and parameters should be selected.
  • Processing Precision: Productions like ball sockets, bearing shells, and railway connections require high precision. For this, advanced manufacturing technologies such as CNC machines can be used.

    4. Testing and Evaluation It is important to check whether products demonstrate the expected performance after manufacturing. Therefore, products must undergo various tests and evaluations before they are launched on the market. In cryogenic steels, these applications are under two subheadings:

  • Cryogenic Tests: Performed to understand whether the steel has the expected high strength at low temperatures.
  • Mechanical Tests: This is where tensile strength, impact, hardness, and brittleness tests, etc., are located. It is important to see whether the material and product meet the expected standards.
Importance of Structural Connection Systems

Importance of Structural Connection Systems

Structural connection elements play a critical role in maintaining the integrity of all structures such as buildings and bridges. In the construction industry, bringing together many components in a harmonious way is extremely important. From this perspective, the need for solid and reliable connections is again understood. At this point, structural connection systems come into play. Construction connection elements are the components that make up this connection system. Connection elements ensure the robustness, safety, and functionality of any building or infrastructure. In our content, you can explore many topics such as structural connection systems, material selection, and strength, and find answers to your questions.

What Are Connection Elements and What Are They Used For?

Construction / structural connection elements are usually equipment used to join two or more materials together and fix them in place. These equipments are made of various materials such as metal, plastic, or composite, depending on the structure. Thanks to the variety of materials, work is done with equipment suitable for the needs of the construction. Connection elements serve to safely hold a structure together. Additionally, they have specific functions such as resistance to corrosion or distributing loads across multiple materials. Thus, necessary safety and integrity are provided in all structures from buildings to bridges. Moreover, each project requires different types of connection elements to ensure a strong and safe structure. Therefore, choosing the right connection elements is very important for the structure to be strong, safe, and durable. For example, looking at what building connection elements are, many materials and terms stand out. In steel-framed buildings, connection elements are generally bolts, welds, and connecting plates. These elements serve to connect the layers of the building and increase the building’s durability.

In reinforced concrete structures, however, the connection elements vary. In structures containing concrete, you often see reinforcement connection elements. Reinforcement refers to iron rods that increase the durability of reinforced concrete structures. That is, the connection elements that provide strength to the structure are called reinforcements. Another connection element that prevents the reinforcement from slipping is the anchoring elements. They ensure the reinforcement is placed correctly. Especially during concrete pouring, these materials are needed to prevent the reinforcement from slipping. In addition to this, various other elements like connection clamps and placement hooks stand out in reinforced concrete structures. These elements vary greatly. Therefore, choosing the right type of connection element is necessary to ensure the structure is strong, safe, and durable.

Material Selection in Structural Connection Systems

Various materials are used at different points of structures. Architects, designers, and builders consider various criteria when deciding which materials to use in the design and construction of a structure. These criteria can be cost, product durability, performance, and aesthetic factors. Additionally, there are criteria such as indoor air quality, energy efficiency, carbon footprint, environment, and sustainability. Material selection directly affects the performance of these connection systems. The strength, toughness, and fatigue resistance of the materials used in connection systems determine the safety and durability of the structure. Therefore, choosing the right material is extremely critical. At this point, materials science is valuable. Since materials science examines the structure and properties of materials, it is an indispensable field of study in structural connection systems. Therefore, it is necessary to make effective use of materials science when creating connection systems. This allows for informed decisions to be made, and potential problems in design and application can be easily resolved.

For example, let’s look at the criteria of strength and durability in material selection. Strength is the most important factor in the selection of construction materials. If a building needs to carry large loads, choosing high-quality steel is important. There are different qualities of steel materials on the market. It is necessary to choose the most appropriate one according to the required strength for the structure. Durability, on the other hand, is related to longevity. A high-quality material may be more expensive than others. However, low future maintenance costs can compensate for this. Transportation and storage processes are also decisive in material selection. This criterion directly affects the duration, cost, and many other factors of the construction. In terms of environmentally friendly practices, one of the most important criteria is sustainability. Sustainable practices are needed for low carbon emissions. Finally, climate conditions are also an important consideration when selecting materials for connection elements. The average temperature range, rain, snow, and wind parameters should be taken into account. The most appropriate material selection should be made according to all these and similar criteria.

How Should the Manufacturing Process Be?

After selecting materials according to specific criteria, the next step is the production process. This process is just as critical as material selection. Steps such as processing the material and giving it form must be done professionally and correctly. Processing and forming change the microstructure of the material, thus altering its mechanical properties. These applications consist of processes such as casting, welding, and rolling. For example, among these, welding is a critical manufacturing process in creating strong and safe structures. Welding, which joins parts through heat and pressure, varies according to criteria such as cost and efficiency. A quality welding process is an inseparable part of the integrity and longevity of structures. The casting process also plays a very important role in the production process. Casting is primarily used to shape metal materials, thus reducing the need for processes like welding. Understanding how these processes affect the material also requires knowledge of materials science.

The other two important aspects of the production process are heat treatment and surface treatments. What is heat treatment? In heat treatment, materials like steel can be hardened or toughened. This involves applying heat to the steel or other relevant materials and then cooling them to improve their durability and properties. Here, the two most important points are the heating temperature and cooling rate. Appropriate equipment is needed for the effective management of steps such as heating and cooling when applying heat treatment to a material. Surface treatments are used to improve aspects such as corrosion resistance and aesthetic properties. Finally, they also offer advantages like protection against moisture and prevention of mold formation. Materials science examines how these applications change the surface properties of materials. It also looks at how surface treatments contribute to the overall performance of the material.

Frequently Asked Questions About Structural Connection Systems

What are structural connection elements?

Equipment that serves to maintain the integrity of structural connection systems is called structural connection elements. Various equipment such as bolts, nuts, welds, iron rods, and placement hooks make up the connection elements.

What are the interests of materials science?

Materials science is a field of study that examines the structure and physical properties of materials. For example, it investigates how processes like casting or welding affect material properties. Additionally, materials science provides benefits in optimizing the properties of materials and designing better materials.

What is strength in construction?

Strength refers to the resistance of materials to external forces. In other words, it is the capacity of materials to withstand the load applied to them.

Does strength increase with temperature? Generally, materials lose their strength as the temperature increases. For example, in steels, an increase in temperature has an effect that reduces strength.
